Description

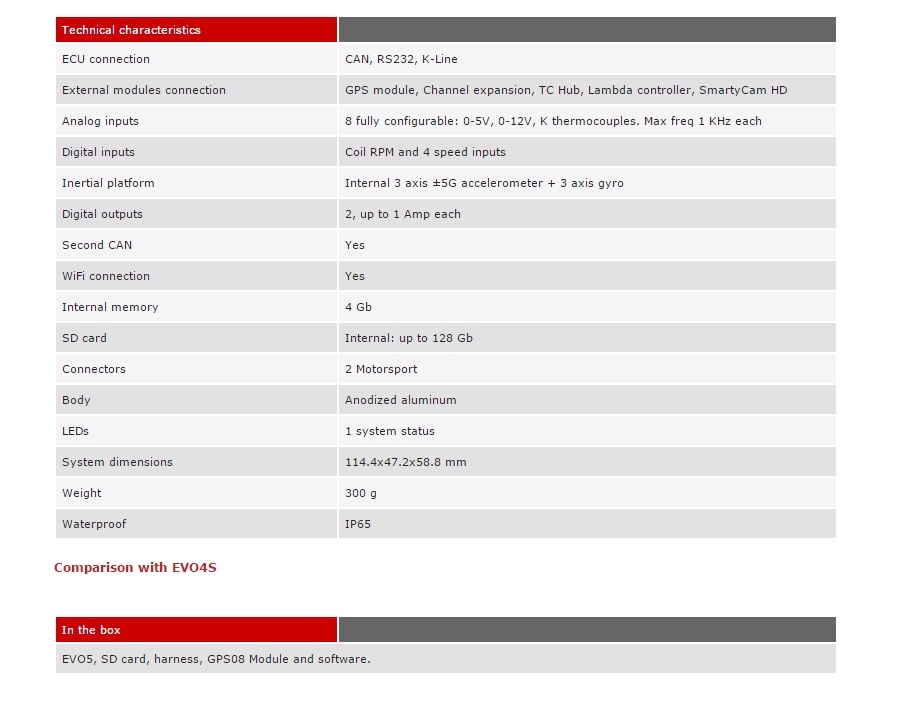

EVO5 is the evolution of the traditional datalogger that, all over the years, has become a standard de facto acquisition system in a huge amount of championships.

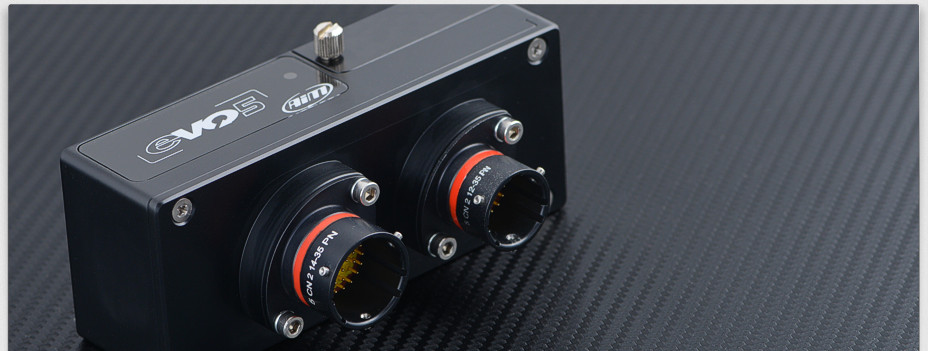

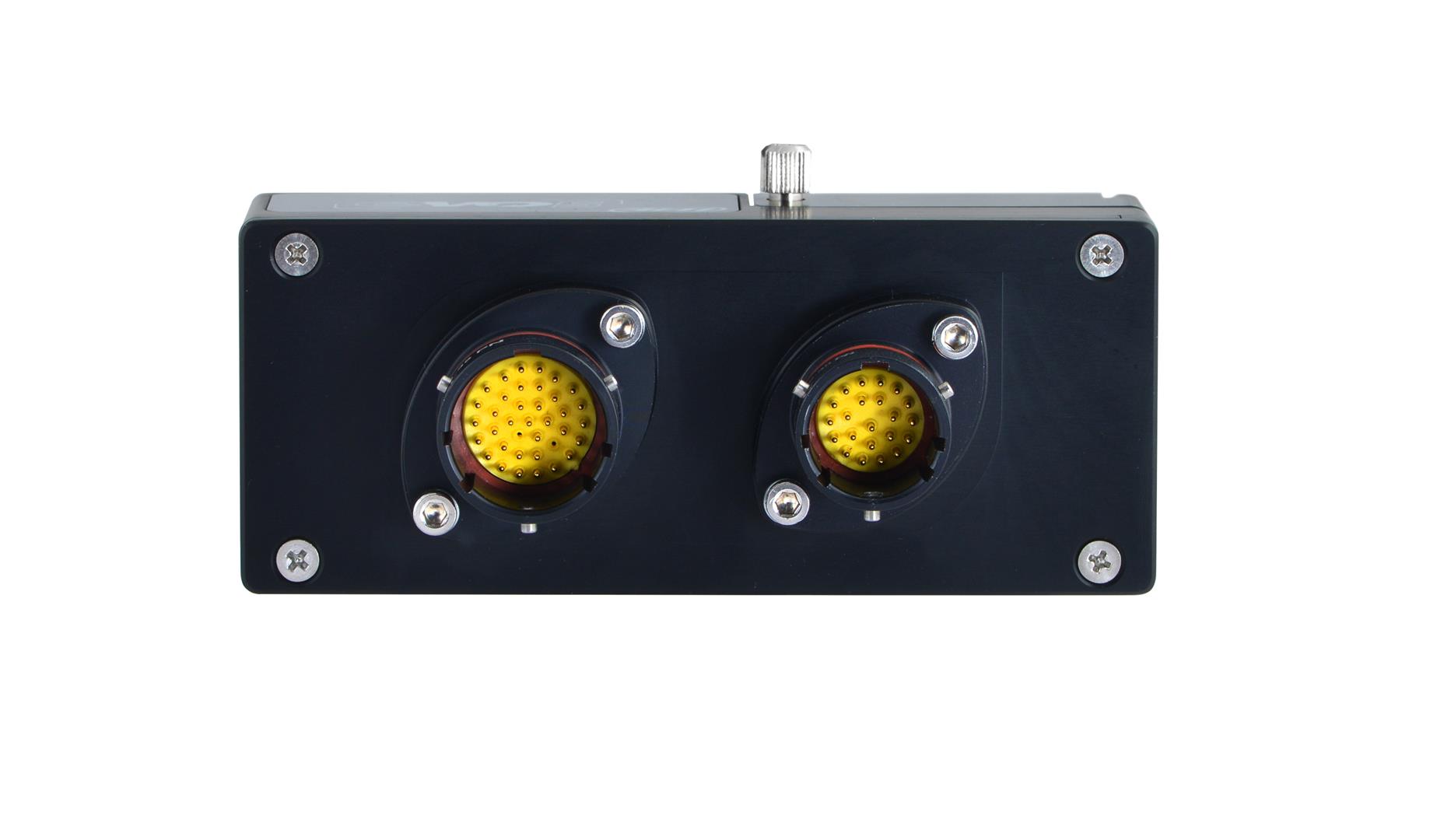

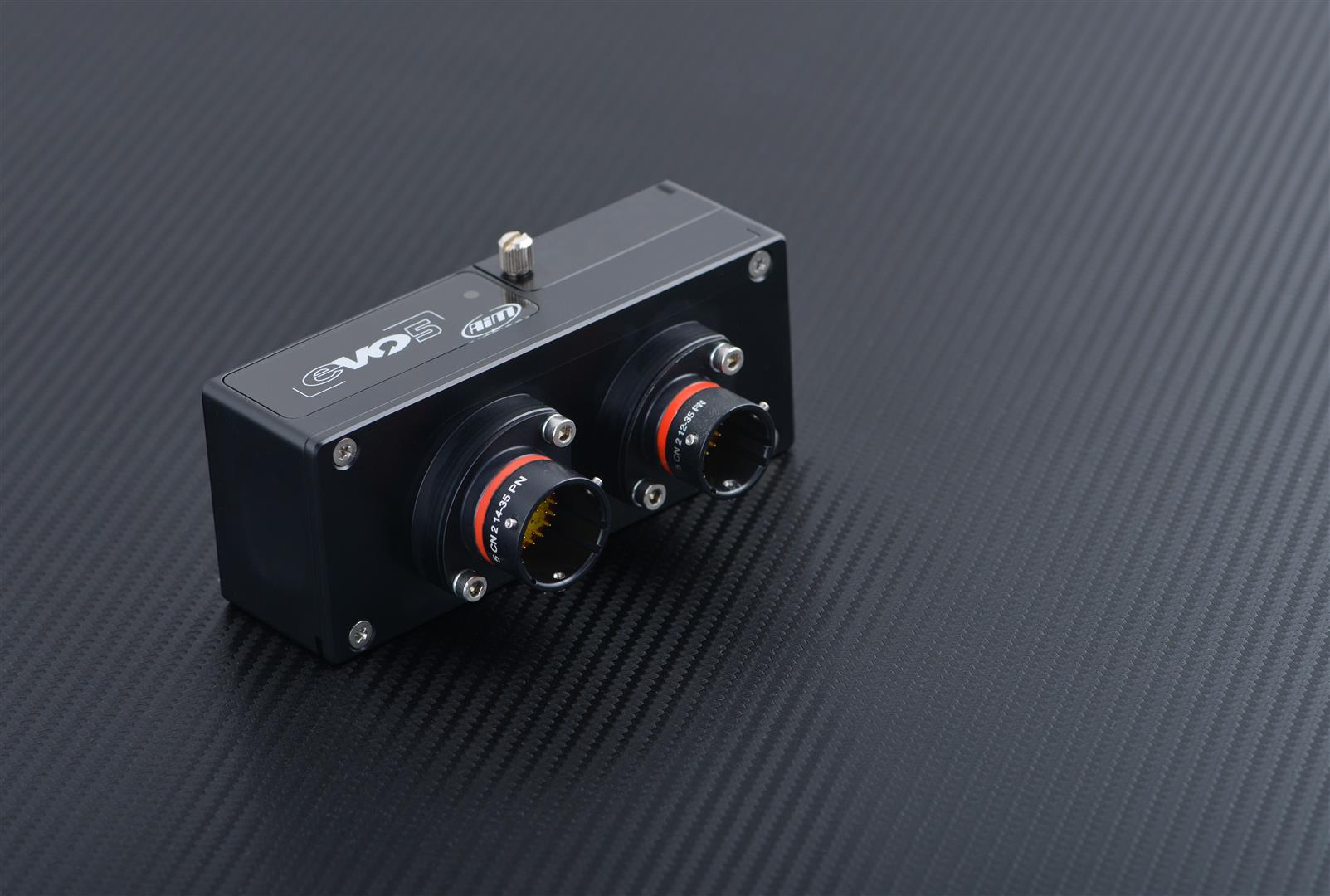

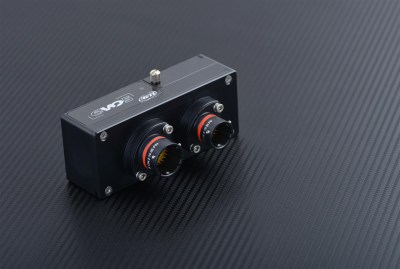

With its compact aluminum body, EVO5 can be easily placed in any vehicle.
Its configuration with the new Race Studio 3 software is simple and immediate.

---

EVO5 samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit.

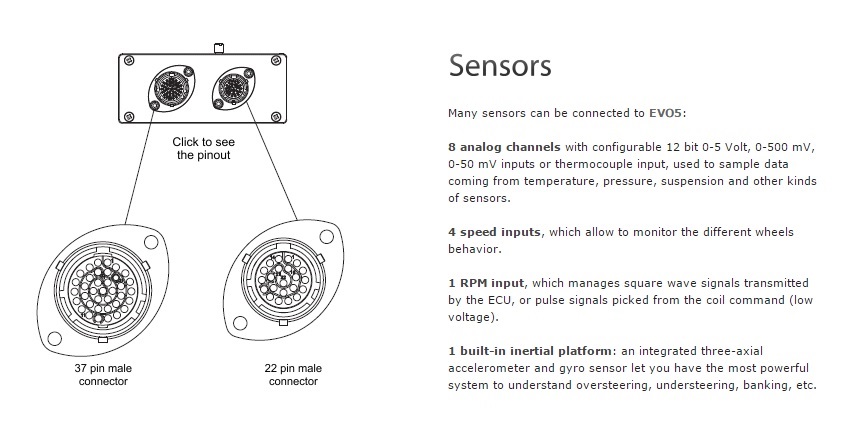

And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 8 configurable analog channels, to the RPM input and to 4 wheel speed inputs.

AiM systems acquire data from the ECU of your vehicle.
The list of available ECU drivers, constantly updated and upgraded, is published here: it includes > 1,000 different ECUs, either Stock and Racing.
They are sorted by manufacturer/vehicle model: for each ECU you find the proprietary communication protocols, including the standard OBDII ones.
From a hardware point of view, AiM systems manage the following data lines:

• CAN
• RS232
• K-Line

An innovative AiM systems feature is its CAN2 line, managing data coming from your additional modules (i.e. ABS, traction control, infrared temperature sensors and more...).
This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.

---

---

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

EVO5 features two digital outputs.
Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.
They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

MORE INFO

---

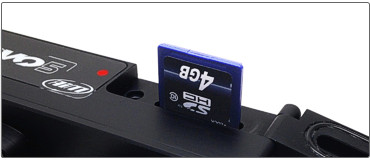

The internal SD card permits to record all possible data you may ever need. The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent any data loss possibility. No way to have a faster data downloading: you remove the SD and... it is done!
Of course a USB connection is available, too.

Configure the system and download your data over a secure 802.11 WiFi connection, even if your car is 100 meters far from you.

---

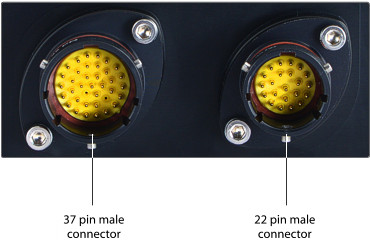

Two multi-channel Motorsport connectors: simple and straightforward, one top quality harness for ALL your connections. A 37 pins connector for main applications (power, CAN, AiM CAN network, etc. ) and a 22 pins connector for additional functions like CAN2, digital outputs...

---

EVO5 is a modular logger, offering the opportunity to increase the number of channels, adding via CAN the following items:

Channel Expansion

It permits to add 4 0-5Volt analog channels.

TC Hub

It adds 4 K thermocouples.

LCU-One Lambda Controller

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

Connection Exampleshown below:

---

Data recorded by EVO5 can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.
