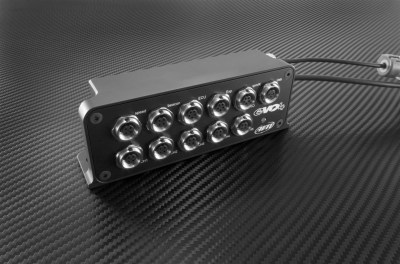

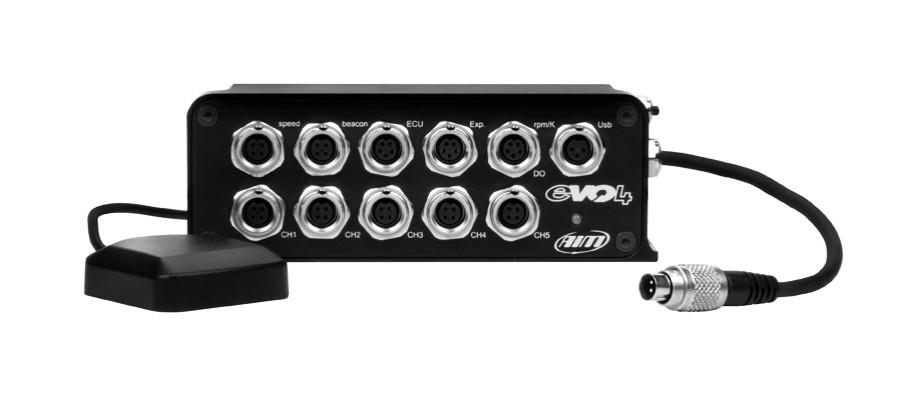

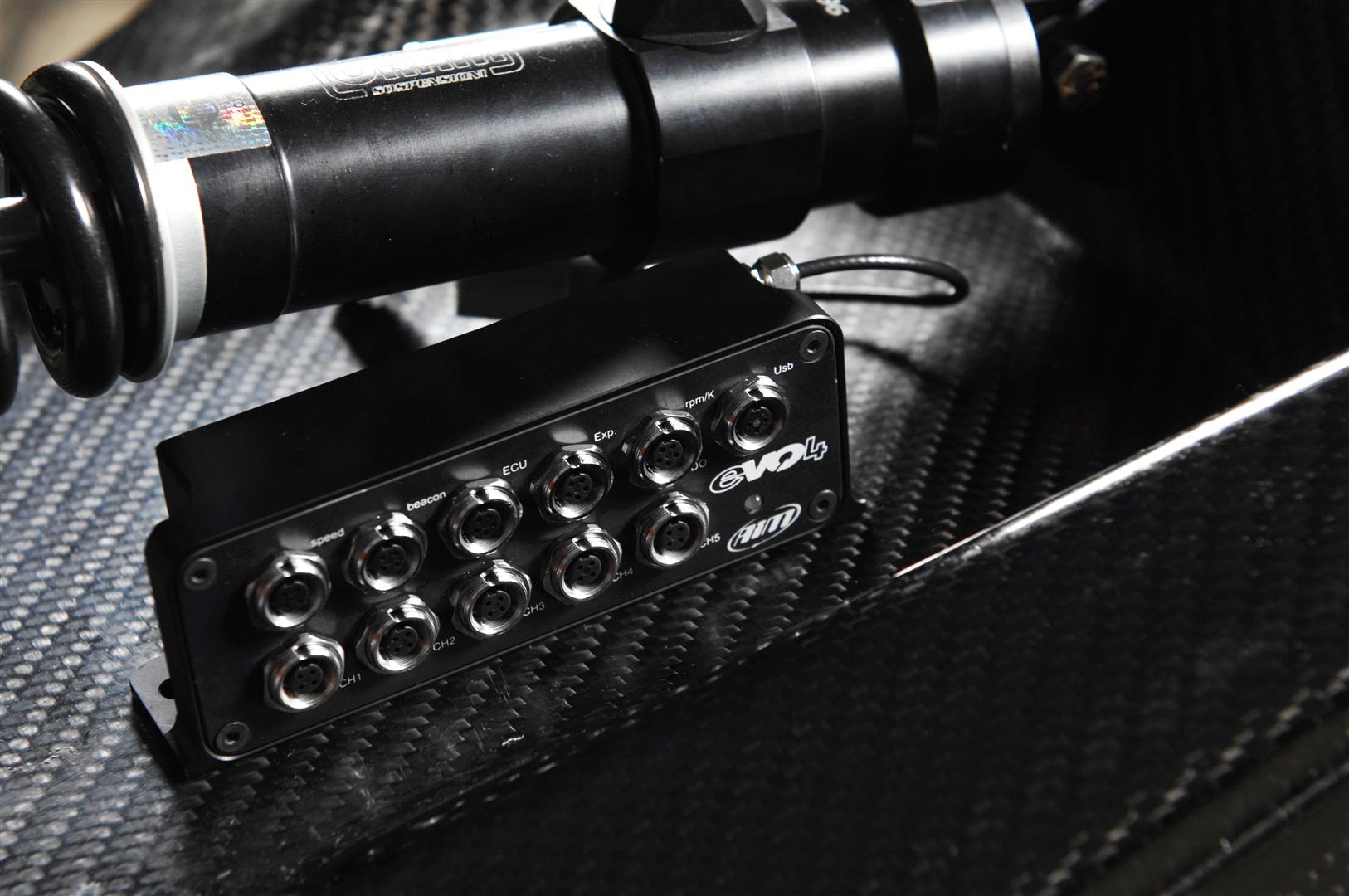

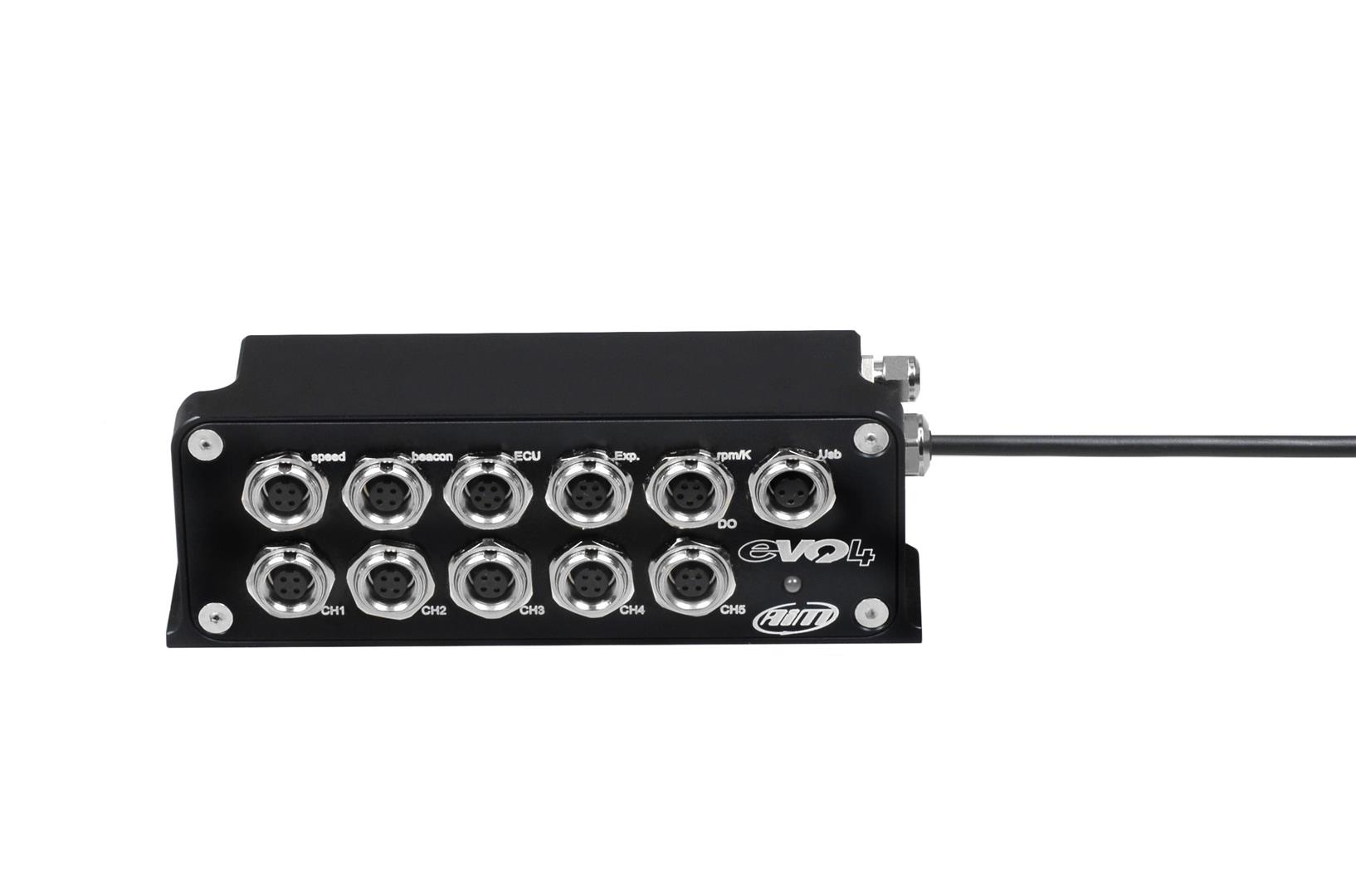

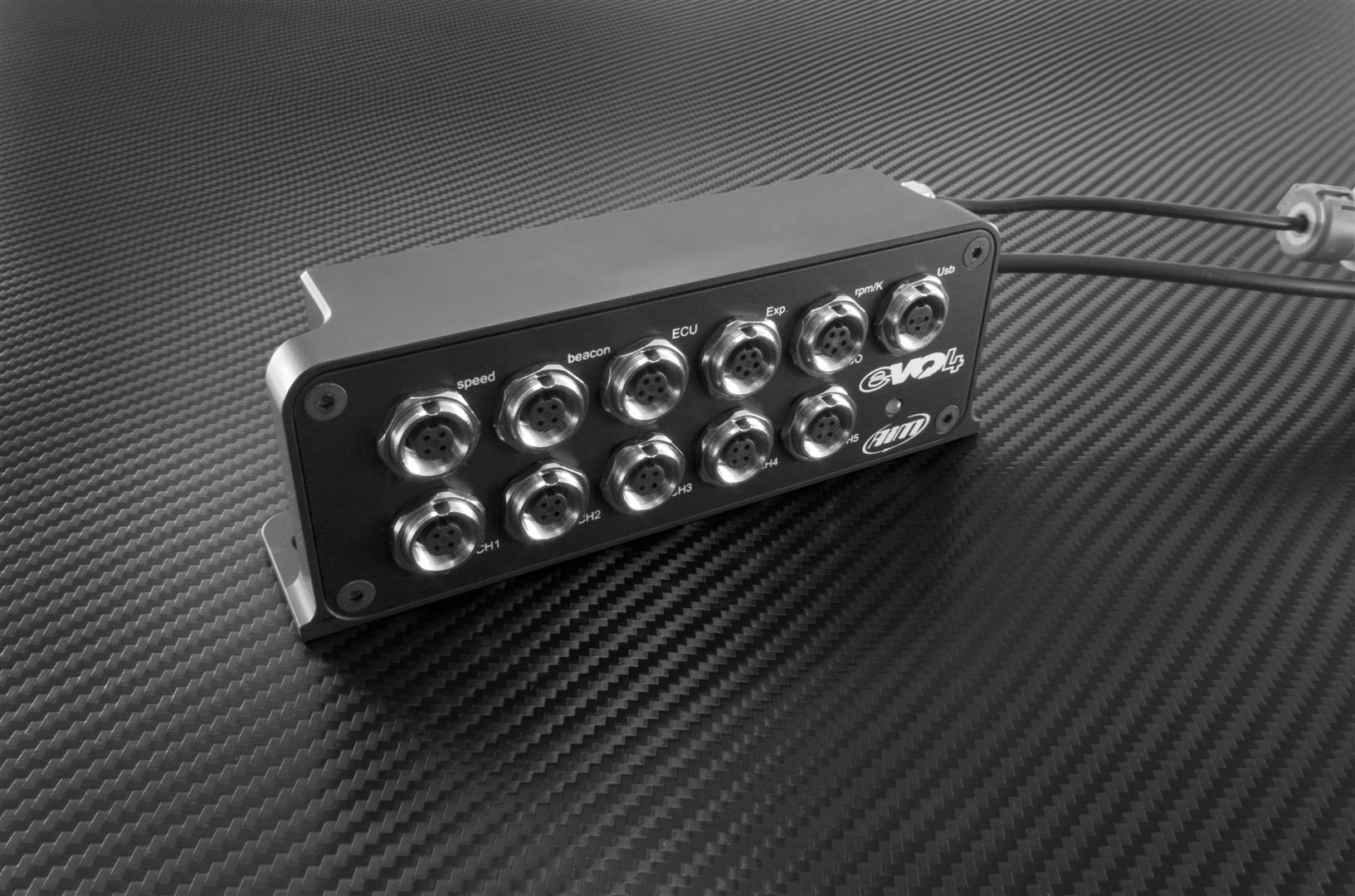

EVO4 is a professional, modular datalogger with integrated GPS. Robust and compact, EVO4 can be easily placed in any vehicle. Its configuration with Race Studio 2 software is simple and immediate.

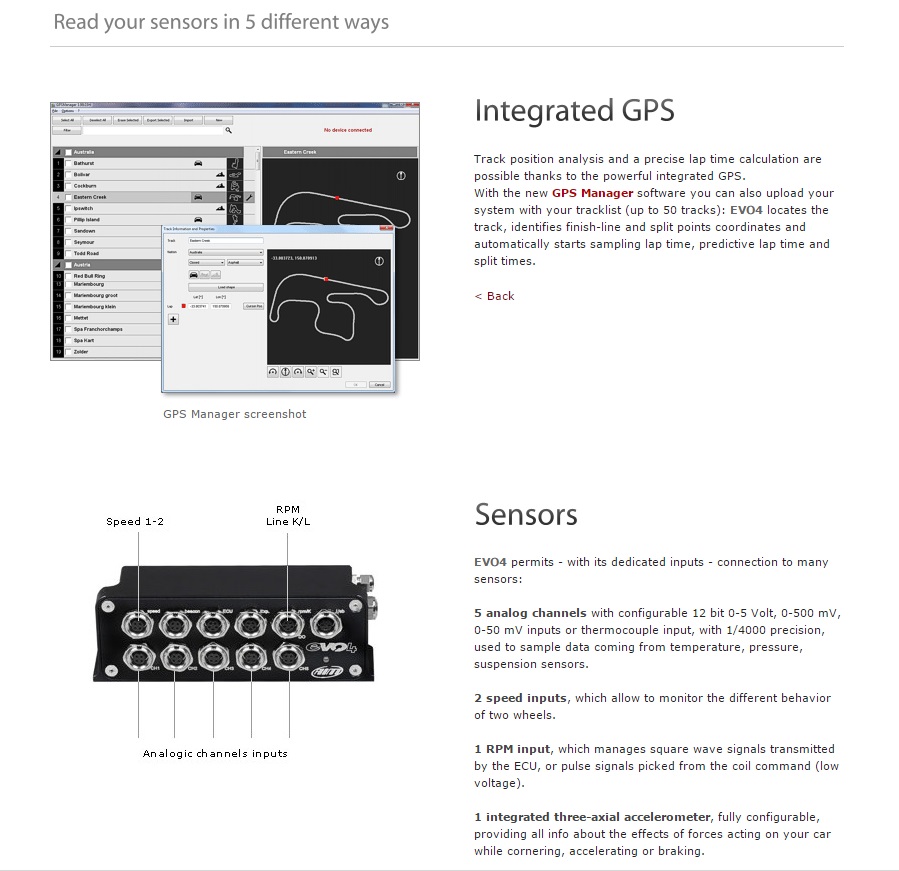

EVO4 samples all information you need: data coming from the Engine Control Unit (ECU) via CAN, serial line or OBDII, from the internal three-axial accelerometer, from the integrated GPS, which permits an automatic and precise lap time calculation.

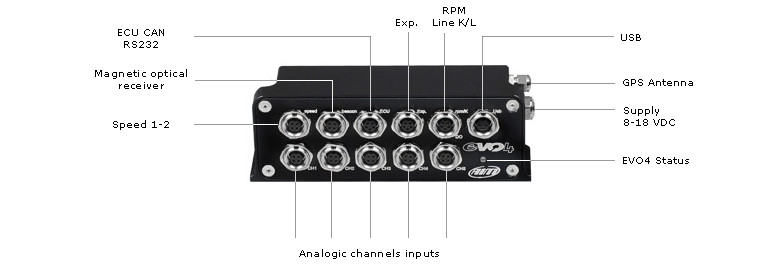

Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.

AiM systems acquire data from the ECU of your vehicle.
The list of available ECU drivers, constantly updated and upgraded, is published here: it includes > 1,000 different ECUs, either Stock and Racing.
They are sorted by manufacturer/vehicle model: for each ECU you find the proprietary communication protocols, including the standard OBDII ones.
From a hardware point of view, AiM systems manage the following data lines:

• CAN
• RS232
• K-Line

EVO4 is a modular logger, offering the opportunity to increase the number of channels, adding via CAN the following items:

Channel Expansion
It permits to add 4 0-5Volt analog channels.

TC Hub
It adds 4 K thermocouples.

LCU-One Lambda Controller

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

Connection Exampleshown below

To visualize in real time all the data EVO4 can be connected to a visor of the "Dash" line (MXL Dash - G-Dash) or to one of the professional AiM steering wheels with integrated display (Formula - GT Steering Wheels).

MXL Dash

G-Dash

Formula Steering Wheel 2

GT Steering Wheels

Available for most models. For more information please contact gpap@fortunemotorsport.com

Data recorded by EVO4 can be downloaded to PC and analyzed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.
